Compositions¶

List View¶

The List view shows the claims in a table. The table shows the attributes:

Composition name
Kubernetes Kind
Age

The table is paginated and you can filter the compositions by the composition name.

Composition View¶

View Tab¶

The Details view allow you to see the composition in a graph view. The graph is composed of objects, events and templates. The graph is interactive, you can click on the objects to see more details.

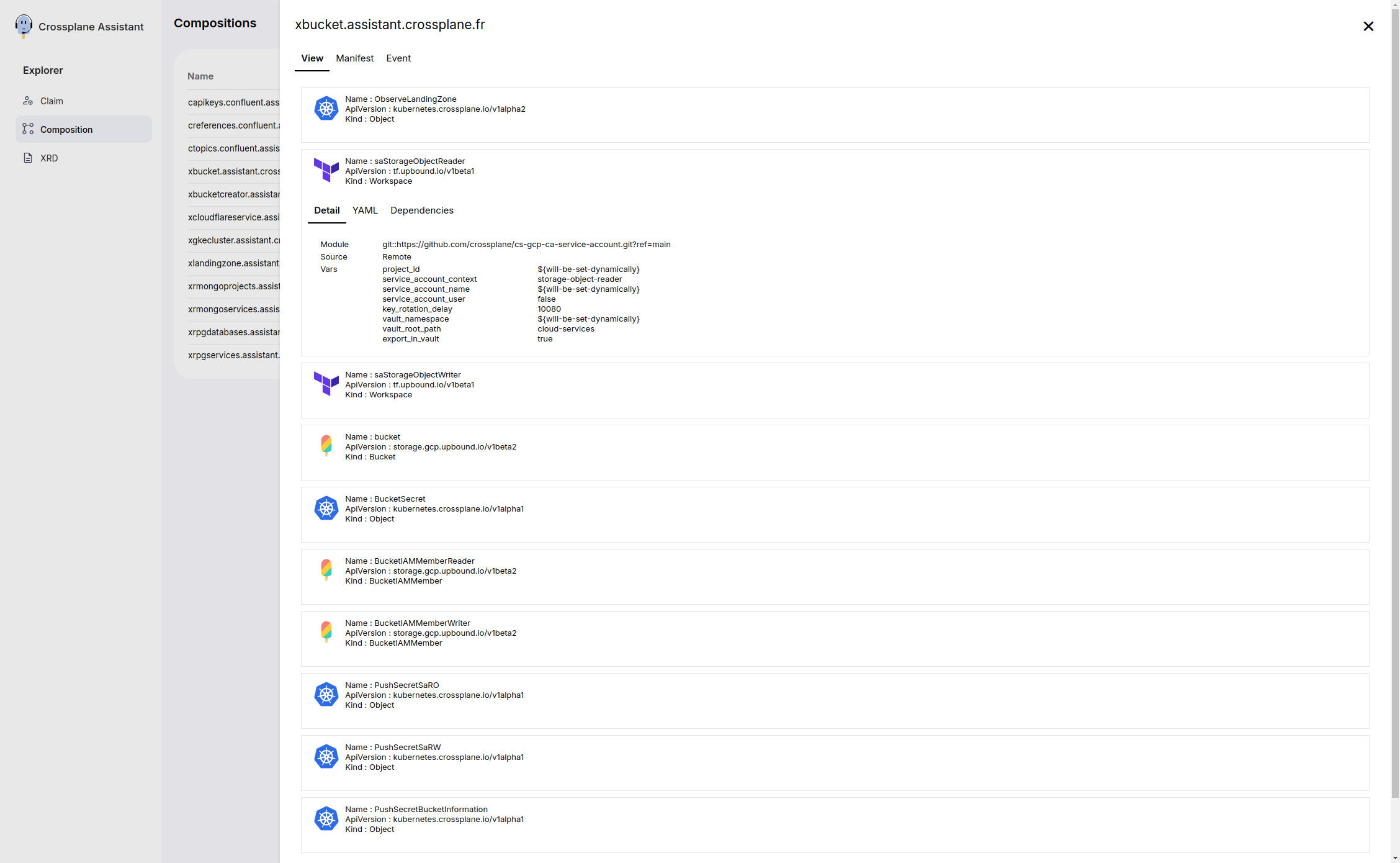

Detail Subtab¶

The Subtab Detail sumup the information of the object in the Composition.

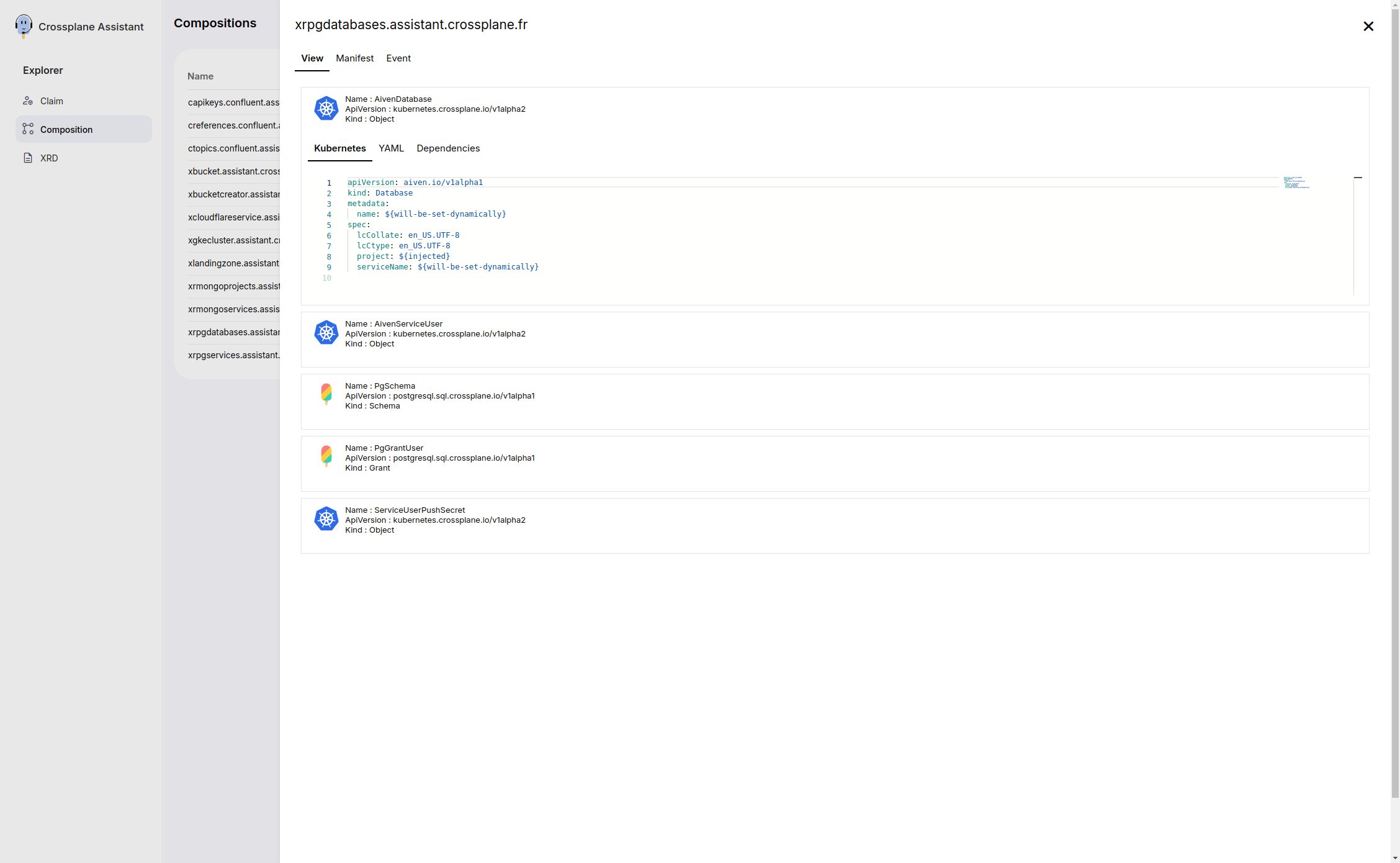

Kubernetes Subtab¶

The Subtab Kubernetes shows the Kubernetes YAML of the generated object.

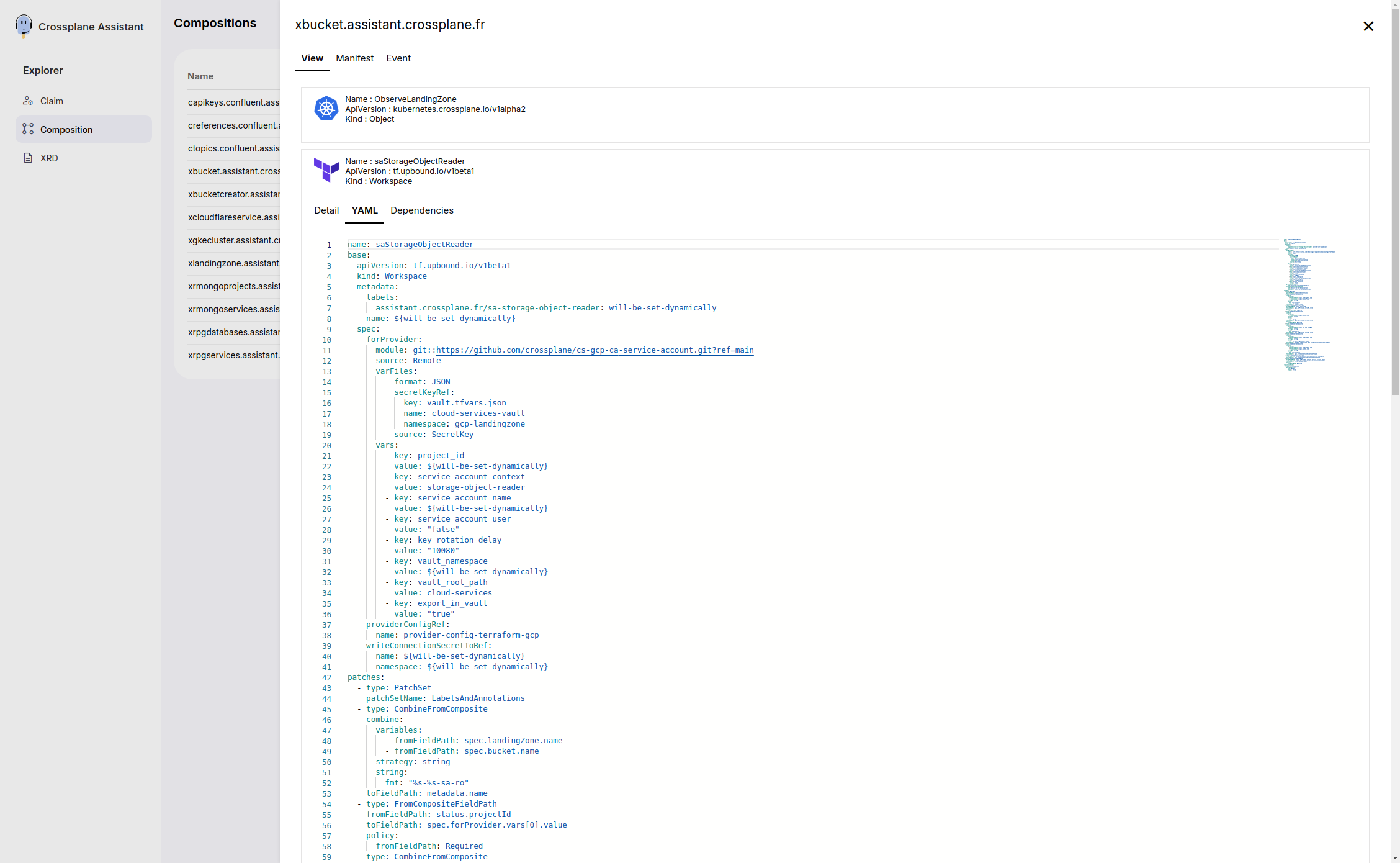

YAML Subtab¶

The Subtab YAML shows the YAML of the object in the Composition.

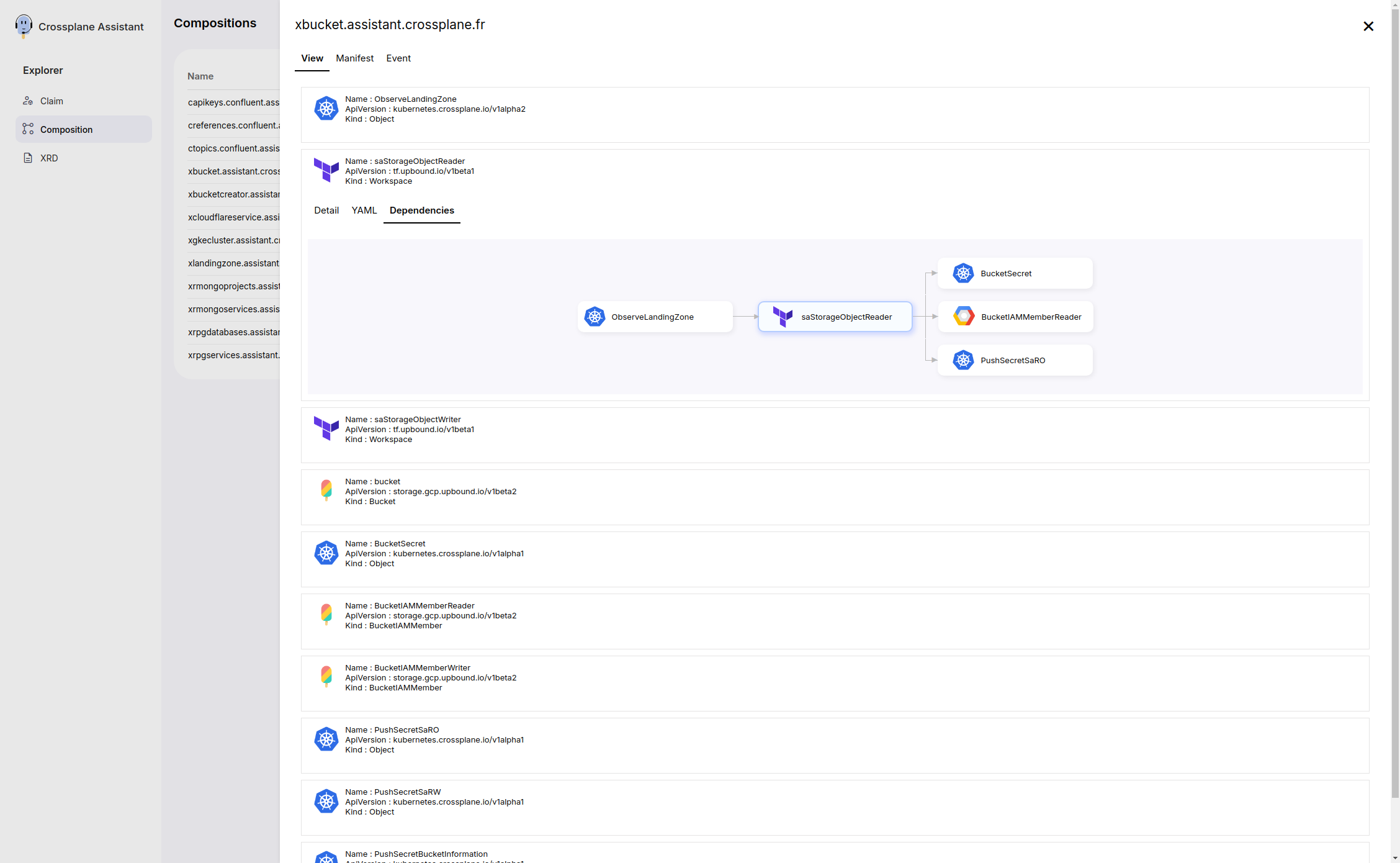

Dependencies Subtab¶

Graph¶

The Subtab Dependencies shows the dependencies of the object in the Composition in a graph view.

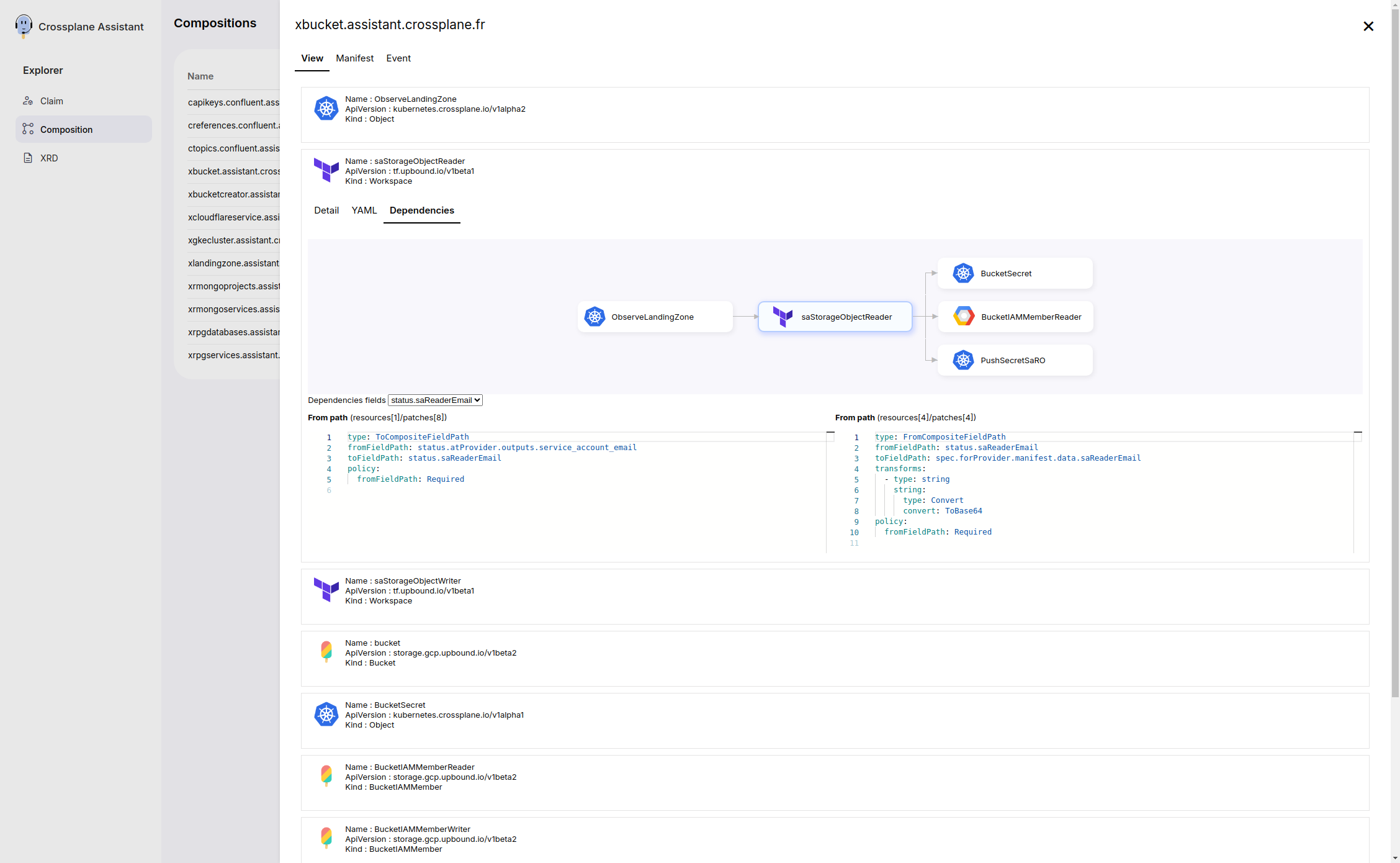

Object interaction¶

The Subtab Dependencies shows the related code of the object in the Composition and the way it is composed across the objects.

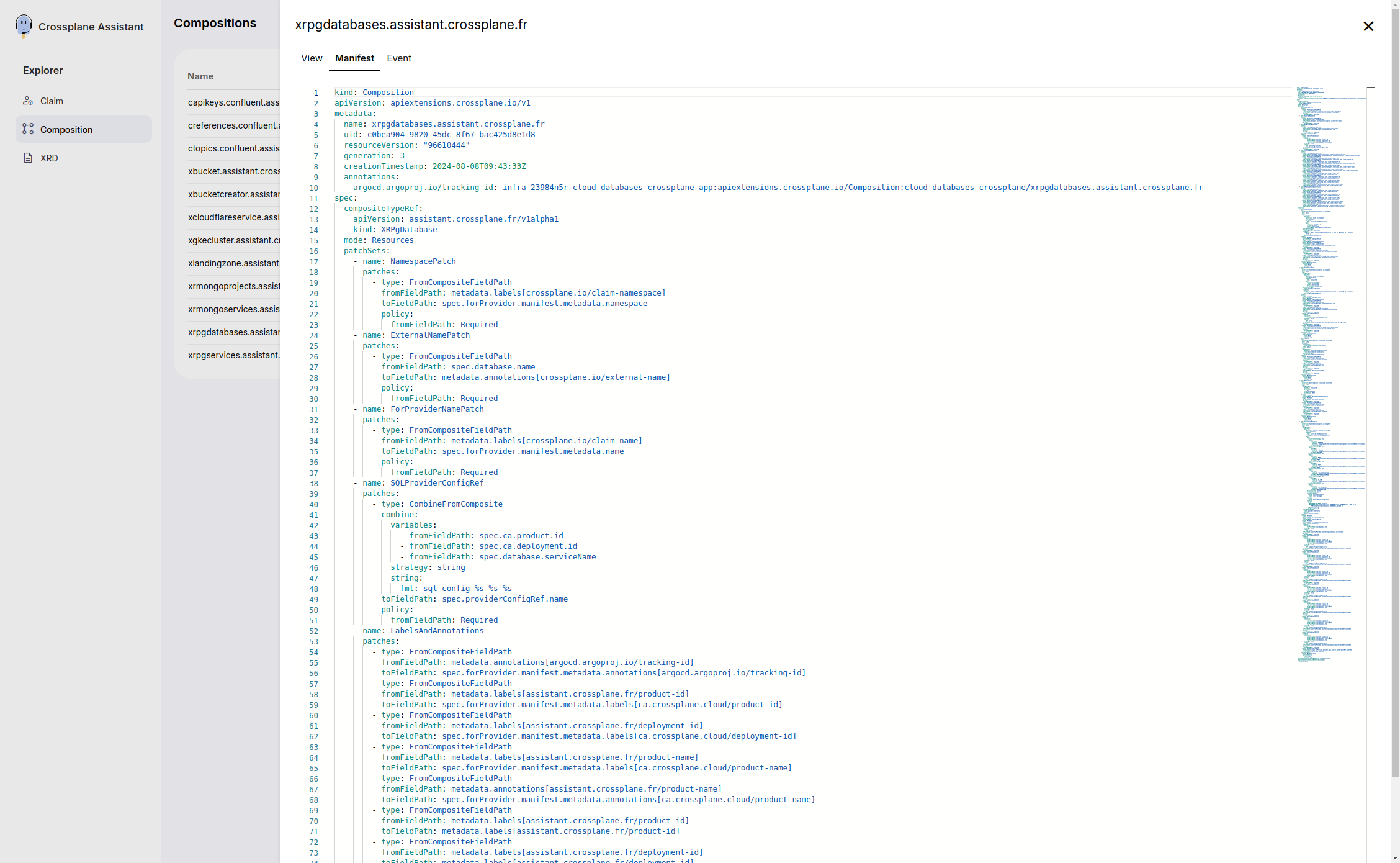

Manifest Tab¶

The view of the objects in the graph is divided in three tabs: Manifest, Event and Template.
